CONTAINED WEIGHER BAGGER

Are you looking for a weigher-bagger system to package your Sugar in drums or open bags?

With its reliable and economical design, SUGAR INPROCESS weigher- bagger has been created to meet your requirements for 10 to 25 kg packaging at rates of up to 60 bags per hour. (For larger capacities see Sugar-CWB 10-25/120).

Bag weights can be changed very simply to enable you to fill suitable quantities for your customers’ demands.

The built-in weighing system allows you to control your feed system.

The SUGAR INPROCESS chute is designed with an expandable seal which, when inflated, means it can fit the shape of your packaging and guarantee impermeability. This will provide the solution for all your safety approaches (HACCP, risks from the inhalation of dust, ATEX, mechanical risks, etc.).

The meticulous ergonomics and the very well thought out cleanability of this equipment will enable your operators to concentrate, focus and devote themselves to the most productive tasks.

This simple, sturdy equipment will be easily incorporated into your new or existing production system and provide a distinct improvement in productivity.

Operates on compressed air at a pressure of 3 to 4 bars + 220 V single phase electricity.

Very wide range of chute diameters available.

Controlled dust accumulation

Equipment approved for contact with food.

Simple, danger-free use for operators.

This economical, space-saving equipment will be easily incorporated into your existing loading system.

The clamping tolerance makes it possible to work with bags for which the size variations may reach +- 6%.

PROVIDING SUCCESS AND SAFETY

GUARANTEEING THE QUALITY OF YOUR PRODUCTS

,

Reduced dust accumulation by containment Adapted to most bagging materials: plastic,paper, polypropylene, nylon, kraft paper, etc.

Especially designed for 10 kg to 25 kg bags(depending on the chute)
Bag heights from 520 mm to 1000 mm (depending on the chute)
Bag widths when flat from 280 mm to 600 mm(depending on the chute)
Rates up to 60 bags per hour
Compressed air supplied with a pressure of 3 to 4 bars

Fast return on investment

Description

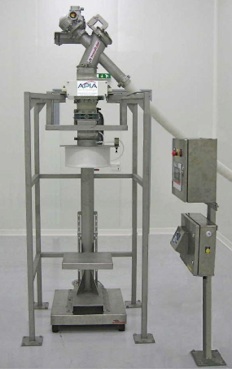

This unit is made up of:

Support stand

Quick-release chute supporting interface

Base fitted with four fixing holes

Mechanically welded construction

Connection interface to be welded on to the existing filler pipe

Flexible nylon connection sleeve with antistatic treatment

Mechanically welded chute

Connection collar + seal

Expandable elastomer flange mounted on the spout

Feed connector

Connection piping
Pneumatic unit built into the support stand including: Pressure regulator
Manual control for clamping/unclamping Terminal connectors
Weighing unit, IPFNA (Instrument de Pesage à Fonctionnement Non-Automatique - Non-automatic weighing instrument) approved for commercial weighing
Service range: 60 kg
Single sensor weighing tray
Electropneumatically controlled loading shut-off valve
Electrical box including:

1 weighing controller with weight indicator and numeric keypad for entering the filling setting

1 servo-control for the shut-off valve

1 on-off control interface terminal board for servo-control of feed equipment (2 speeds)

Construction: Stainless steel 304 sheet metal, food quality elastomers.
